Race Line

The best choice for all racing yachts is the race line. The body is made of 7075-T651 hardcoated aluminium fully machined for extreme weight saving. These valves have
been tested on AC, STP 65 and TP52 yachts and ocean race boats. As for other Cariboni’s valves, each valve is able to control a single acting cylinder with a 3 position control knob (pump-hold-release).

All race line valves can be supplied with servo controls

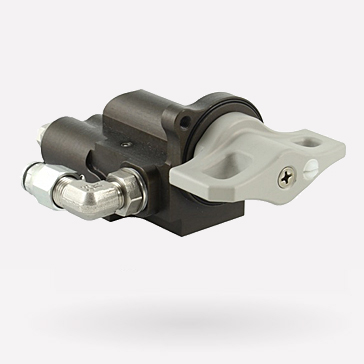

Manual Single Valve

Max working pressure: 700 bar (10.000PSI)
Weight: 0,311kg (0,685lbs)
Max oil flow: 8lpm
Hard coated aluminium
Hold-pump-release positions
Relief pressure valve incorporated
Flow release control
7/16” JIC UNF 37° stainless steel fitting*

* Custom fittings available on request (1/4” BSPP – 9/16” JIC UNF 37° - 3/8” BSPP) also in titanium alloy

All valves types can be placed  on linear or crossed lightweight  aluminium manifold

Manual Double Valve

Max working pressure: 700 bar (10.000 PSI)
Weight: 0,560kg (1,234lbs)
Max oil flow: 8lpm
Hard coated aluminium
Hold – pump A – pump B positions
Relief pressure valve incorporated
Flow release control
7/16” JIC UNF 37° stainless steel fittings*

* Custom fittings available on request (1/4” BSPP – 9/16” JIC UNF 37° - 3/8” BSPP) also in titanium alloy

All valves types can be placed  on linear or crossed lightweight  aluminium manifold

Bagolin

Max working pressure: 700 bar (10.000 PSI)
Weight: 0,174kg (0,384lbs)
Max oil flow: 6lpm
Hard coated aluminium
Hold – pump – release positions
Manual release control
7/16” JIC UNF 37° stainless steel fittings*

* Custom fitting available on request also made of titanium alloy

Bagolon

Max working pressure: 700 bar (10000 psi)
Weight: 0,195 kg (0.43 lbs)
Max oil flow: 12 lpm
Hard coated aluminium
Hold – Pump – release positions
Manual release control
7/16 UNF JIC 37° stainless steel fittings

RACE LINE VALVES PANELS & ARRANGEMENTS

Single and double valves can be placed on lightweight ergal 7075-T651 manifold for linear or crossed arrangements.
Each arrangement is supplied with stainless steel fittings: aluminum or titanium fittings available on request.
Race line panels are designed to have pressurized suction and return lines and can be equipped with electric power pump back-up for maximum performances.
