Panel

Panel

Our panels are equipped with one or two speed quad line manual pump and up to four single acting valves.

Quad line manual pumps and valves are based on Race line design: this guarantees performance and reliability.

Alternate pump: 7075 hard coated aluminium alloy body.

Manual valve: 6082-T6 hard coated aluminium alloy body.

Panel: 6082-T6 hard coated aluminium alloy body.

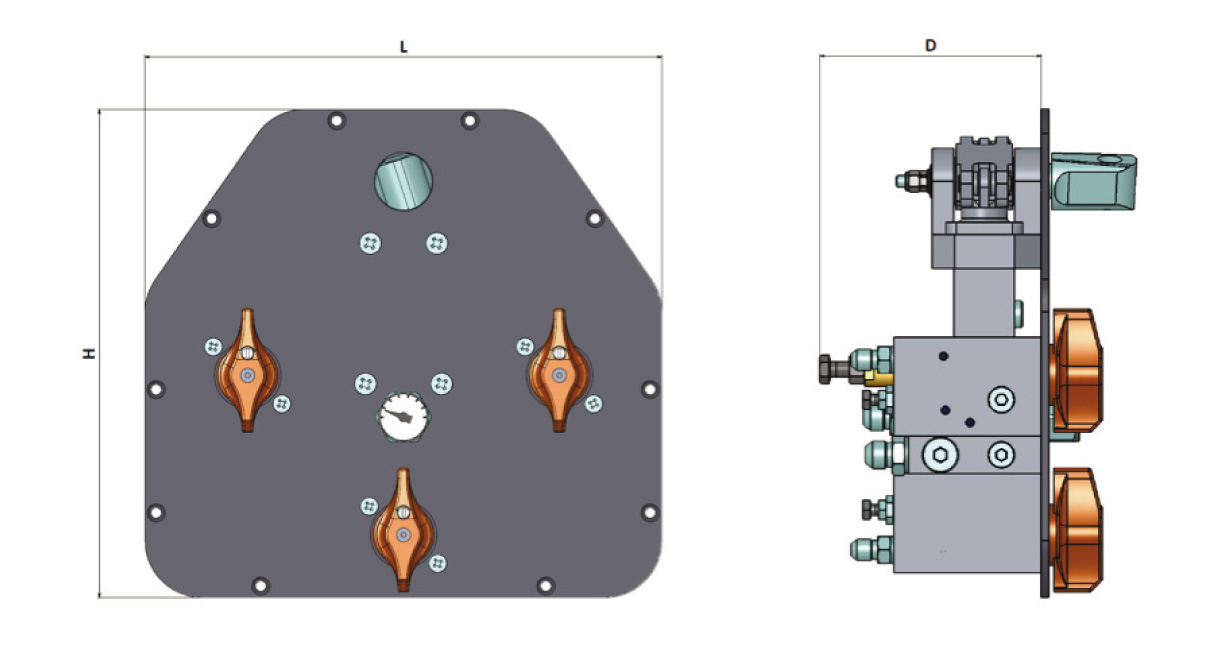

MODEL	Pump model		VALVE NUMBER		L		H		D		Total weight
					mm	in	mm	in	mm	in	kg	lb
CP 1S 1V	one speed		1		200	7,9	277	10,9	116	4,6	4,2	9,3
CP 2S 1V	two speeds										6,3	13,9
CP 1S 2V	one speed		2		282	11,1	232	9,1	116	4,6	5,3	11,7
CP 2S 2V	two speeds										7,4	16,3
CP 1S 3V	one speed		3		282	11,1	277	10,9	116	4,6	6,2	13,7
CP 2S 3V	two speeds										8,3	18,3
CP 1S 4V	one speed		4		282	11,1	277	10,9	116	4,6	7,0	15,4
CP 2S 4V	two speeds										9,1	20,1
